Looking for help with a small custom sheet aluminum job

  1. #1
    truncated phrase here trider143's Avatar
    Join Date
    Sep 2009
    Location
    Hopkinton
    Posts
    355

    Looking for help with a small custom sheet aluminum job


    I want to make a small flat bracket to mount a RAM mount or Go Pro on a Ducati Supersport, using 3/16" sheet aluminum. The finished piece is about 3 1/4" x 3 1/4, with two holes drilled to 3/8" D.

    This will attach to the two chicago screws attaching the plastic housing around the ignition.

    A crude mock-up using hardboard is shown to illustrate the cutting needed. The critical dimensions and cuts are hole locations and the ears around the holes to avoid the housing.

    Any suggestions where to get this done? (I am in metrowest area, but some travel is OK too.)

    Looking for help with a small custom sheet aluminum job-img_2159-jpg

    0 Not allowed! Not allowed!

  2. #2
    Member Johnpewpew's Avatar
    Join Date
    Aug 2017
    Location
    Chicopee, MA
    Posts
    240

    Re: Looking for help with a small custom sheet aluminum job

    I'll look and see if I got some scrap laying around.
    3 1/4x3 1/4 square. By 3/16 thick. With 2 3/8 holes drilled. Where do you need the holes drilled on the plate?

    0 Not allowed! Not allowed!
    2016 triumph street triple R
    "A Journey must begin with one step"

  3. #3
    truncated phrase here trider143's Avatar
    Join Date
    Sep 2009
    Location
    Hopkinton
    Posts
    355

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by Johnpewpew View Post
    I'll look and see if I got some scrap laying around.
    3 1/4x3 1/4 square. By 3/16 thick. With 2 3/8 holes drilled. Where do you need the holes drilled on the plate?
    The critical dimensions are 2x 0.375" holes 2.1" separated and then a 0.575" radius cut around the bottom 1/2 of the holes. The rest of the can be straight and dimensions are less critical, and I could try with a jigsaw.

    Looking for help with a small custom sheet aluminum job-img_2160-jpg

    0 Not allowed! Not allowed!

  4. #4
    Member Johnpewpew's Avatar
    Join Date
    Aug 2017
    Location
    Chicopee, MA
    Posts
    240

    Re: Looking for help with a small custom sheet aluminum job

    Ok let me see what I got laying around

    0 Not allowed! Not allowed!
    2016 triumph street triple R
    "A Journey must begin with one step"

  5. #5
    Member Johnpewpew's Avatar
    Join Date
    Aug 2017
    Location
    Chicopee, MA
    Posts
    240

    Re: Looking for help with a small custom sheet aluminum job

    No dice on the 3/16" thick aluminum. I got 1/8"

    0 Not allowed! Not allowed!
    2016 triumph street triple R
    "A Journey must begin with one step"

  6. #6
    truncated phrase here trider143's Avatar
    Join Date
    Sep 2009
    Location
    Hopkinton
    Posts
    355

    Re: Looking for help with a small custom sheet aluminum job

    Appreciate you checking.

    0 Not allowed! Not allowed!

  7. #7
    Lifer Falko's Avatar
    Join Date
    Mar 2010
    Location
    MoonTown
    Posts
    5,092

    Re: Looking for help with a small custom sheet aluminum job

    How professional do you want it? If you want something that looks factory, I've had things done at ET Duval in Leominster. They have a water jet, they'll CAD it up and cut it out. Pricey though for that one piece. If you want to just cut it out and sand/file/polish it over time to a good look, I might have a chunk of metal lying around here.

    0 Not allowed! Not allowed!
    Dad's Dream: Earn enough money to live the life that his wife and kids do.

  8. #8
    truncated phrase here trider143's Avatar
    Join Date
    Sep 2009
    Location
    Hopkinton
    Posts
    355

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by Falko View Post
    How professional do you want it? If you want something that looks factory, I've had things done at ET Duval in Leominster. They have a water jet, they'll CAD it up and cut it out. Pricey though for that one piece. .
    Well, depends upon the Supersport market size.
    FWIW - I was on group ride a week and half back, and there were 4 brand new Supersport Ss on the ride!

    Thanks for the pointer. I will check, does not hurt to ask.

    0 Not allowed! Not allowed!

  9. #9
    Member Johnpewpew's Avatar
    Join Date
    Aug 2017
    Location
    Chicopee, MA
    Posts
    240

    Re: Looking for help with a small custom sheet aluminum job

    I can do it out of steel. I got 12g steel laying around

    0 Not allowed! Not allowed!
    2016 triumph street triple R
    "A Journey must begin with one step"

  10. #10
    Member flippedr6's Avatar
    Join Date
    Jul 2015
    Location
    Reading, MA
    Posts
    131

    Re: Looking for help with a small custom sheet aluminum job

    If you give me a few other dimensions I can draw it in Solidworks and water jet it out. I have a ton of stock at work I'm sure I have the 3/16


    edit or if you want send me the template I can measure and compare before I send it back.

    3 Not allowed! Not allowed!
    Last edited by flippedr6; 08-03-17 at 02:13 PM.
    2008 Kawasaki Concours 14

    2018 Beta 390 RR-S

  11. #11
    Member Johnpewpew's Avatar
    Join Date
    Aug 2017
    Location
    Chicopee, MA
    Posts
    240

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by flippedr6 View Post
    If you give me a few other dimensions I can draw it in Solidworks and water jet it out. I have a ton of stock at work I'm sure I have the 3/16
    That's better than what I can do lol

    0 Not allowed! Not allowed!
    2016 triumph street triple R
    "A Journey must begin with one step"

  12. #12
    truncated phrase here trider143's Avatar
    Join Date
    Sep 2009
    Location
    Hopkinton
    Posts
    355

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by flippedr6 View Post
    If you give me a few other dimensions I can draw it in Solidworks and water jet it out. I have a ton of stock at work I'm sure I have the 3/16
    Outstanding offer. I will work up a detailed drawing tonight!

    0 Not allowed! Not allowed!

  13. #13
    Lifer joeswamp's Avatar
    Join Date
    Sep 2006
    Location
    Swampscott, MA
    Posts
    1,107

    Re: Looking for help with a small custom sheet aluminum job

    Aluminum is incredibly easy to cut and file, you could cut it with a jigsaw slightly oversize and then file/drawfile the edges to the line. Drill the holes with a drill press and you're done. You can buy raw material at Home Depot (overpriced but you're buying such a tiny quantity that it doesn't matter).

    Although I agree it is much easier to find someone with scrap and a waterjet cutter.

    0 Not allowed! Not allowed!
    Joe
    04 Thruxton (Street)
    01 SV650 (Track)
    75 CB400F (Future Vintage Racer)
    68 BSA Royal Star (Garage Floor Lubricator)

  14. #14
    truncated phrase here trider143's Avatar
    Join Date
    Sep 2009
    Location
    Hopkinton
    Posts
    355

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by flippedr6 View Post
    If you give me a few other dimensions I can draw it in Solidworks and water jet it out. I have a ton of stock at work I'm sure I have the 3/16


    edit or if you want send me the template I can measure and compare before I send it back.
    I have attached a PDF with more detailed dimensioning that I think (hope) is sufficient to enter into CAD.

    Thank you very much, and let me know if I missed anything in the drawing.

    Attachment 47811

    0 Not allowed! Not allowed!

  15. #15
    Member flippedr6's Avatar
    Join Date
    Jul 2015
    Location
    Reading, MA
    Posts
    131

    Re: Looking for help with a small custom sheet aluminum job

    Will do man I should be able to do it tomorrow.


    Sent from my iPhone using Tapatalk

    0 Not allowed! Not allowed!
    2008 Kawasaki Concours 14

    2018 Beta 390 RR-S

  16. #16
    Senior Member
    Join Date
    Jun 2011
    Location
    Boston
    Posts
    436

    Re: Looking for help with a small custom sheet aluminum job

    There's a metal shop in Woburn mass and they sell sheets to bar stock.


    Sent from my iPhone using Tapatalk

    0 Not allowed! Not allowed!

  17. #17
    Member flippedr6's Avatar
    Join Date
    Jul 2015
    Location
    Reading, MA
    Posts
    131

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by imstuner View Post
    There's a metal shop in Woburn mass and they sell sheets to bar stock.


    Sent from my iPhone using Tapatalk
    If you are talking about Metal Mart on 6th avoid avoid it. They are so over priced its crazy. There is Admiral metal over near BJ's but they dont sell smll stuff.

    0 Not allowed! Not allowed!
    2008 Kawasaki Concours 14

    2018 Beta 390 RR-S

  18. #18
    Senior Member
    Join Date
    Jun 2011
    Location
    Boston
    Posts
    436

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by flippedr6 View Post
    If you are talking about Metal Mart on 6th avoid avoid it. They are so over priced its crazy. There is Admiral metal over near BJ's but they dont sell smll stuff.
    Thanks for the tip and I'll go check it out.

    0 Not allowed! Not allowed!

  19. #19
    Lifer joeswamp's Avatar
    Join Date
    Sep 2006
    Location
    Swampscott, MA
    Posts
    1,107

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by flippedr6 View Post
    If you are talking about Metal Mart on 6th avoid avoid it. They are so over priced its crazy. There is Admiral metal over near BJ's but they dont sell smll stuff.
    Metal Mart is really pricey, but they're sort of the only game in town for small quantities. I've been curious as to the best place to buy mild sheet steel in the Boston area -- especially 19 gauge.

    0 Not allowed! Not allowed!
    Joe
    04 Thruxton (Street)
    01 SV650 (Track)
    75 CB400F (Future Vintage Racer)
    68 BSA Royal Star (Garage Floor Lubricator)

  20. #20
    Backwoods lobster boy number9's Avatar
    Join Date
    Aug 2005
    Location
    Hanover, NH
    Posts
    4,280

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by joeswamp View Post
    Metal Mart is really pricey, but they're sort of the only game in town for small quantities. I've been curious as to the best place to buy mild sheet steel in the Boston area -- especially 19 gauge.
    I looked for ages when I lived in Boston proper & never found a good resource. I ended up going to Metal Mart. Yeah, they're pricey, but no one else is willing to bother with such low quantities.

    0 Not allowed! Not allowed!
    '02 Ducati 998, '08 Ducati HyperMotard 1100S, '14 Subaru XV Crosstrek

  21. #21
    Lifer Stromper's Avatar
    Join Date
    Mar 2010
    Location
    Eastern Ct
    Posts
    3,248

    Re: Looking for help with a small custom sheet aluminum job

    Mc Master Carr

    You should be ablw to hack that out with a jig saw , and a file

    0 Not allowed! Not allowed!
    The calculus of hate

    It is not that I should win it is that you should lose
    It is not that I succeed it is that you fail
    It is not that I should live it is that you should die

  22. #22
    truncated phrase here trider143's Avatar
    Join Date
    Sep 2009
    Location
    Hopkinton
    Posts
    355

    Re: Looking for help with a small custom sheet aluminum job

    I finally have the bike, bracket, and hard-to-find-dimension-off-the-shelf sex change screws all in the same place today. Installed the bracket, mounted the gopro and took it for a test ride. Worked out great, and I have now have a nicely-centered and stable camera mount for the 2017 Supersport, just in time for track day.

    Huge thank you to flippedr6 for building the bracket for me - perfectly done!

    Bracket installed:
    Looking for help with a small custom sheet aluminum job-img_2325-jpg

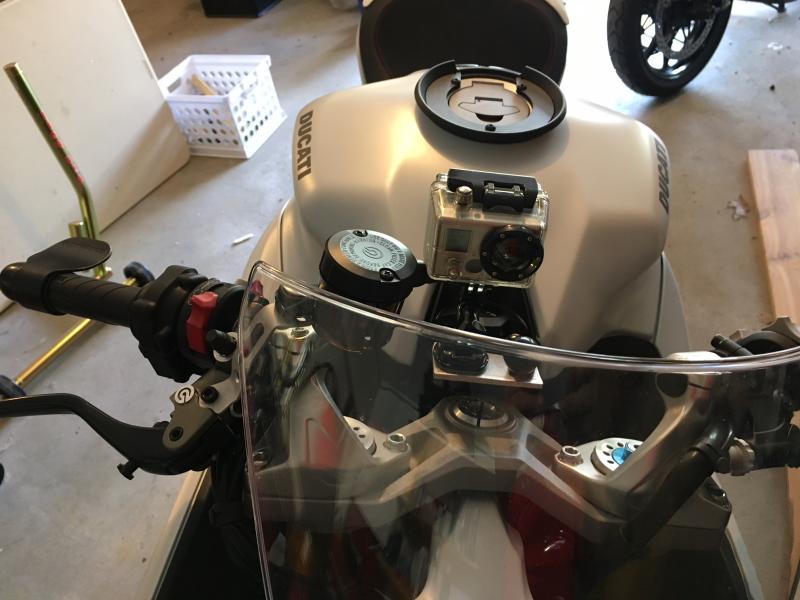

    With gopro installed:
    Looking for help with a small custom sheet aluminum job-img_2326-jpg

    Frame grab from test ride video:
    Looking for help with a small custom sheet aluminum job-screen-shot-2017-09-08-a

    5 Not allowed! Not allowed!

  23. #23
    Rookie Rada's Avatar
    Join Date
    Sep 2010
    Location
    Granville, NY
    Age
    50
    Posts
    1,962

    Re: Looking for help with a small custom sheet aluminum job

    Looks mint. Nice work

    0 Not allowed! Not allowed!

  24. #24
    Senior Member AEG's Avatar
    Join Date
    Aug 2012
    Location
    Simsbury, CT
    Posts
    627

    Re: Looking for help with a small custom sheet aluminum job

    You might want to adjust the camera to not record your speed on the street ... just in case Looking for help with a small custom sheet aluminum job

    0 Not allowed! Not allowed!

  25. #25
    truncated phrase here trider143's Avatar
    Join Date
    Sep 2009
    Location
    Hopkinton
    Posts
    355

    Re: Looking for help with a small custom sheet aluminum job

    Quote Originally Posted by AEG View Post
    You might want to adjust the camera to not record your speed on the street ... just in case Looking for help with a small custom sheet aluminum job
    that is why I posted the frame grab and not the video

    0 Not allowed! Not allowed!
