Broken bolt

  1. #1
    Unsafe At Any Speeds Jim's Avatar
    Join Date
    Aug 2007
    Location
    :lurk:
    Posts
    12,219

    Broken bolt

    I have a Woodcraft frame slider bolt broken in my motor.

    We used an EZ out today to extract it. The EZ out grabbed the bolt, but the tip broke in the bolt.

    What are my options now?

    0 Not allowed! Not allowed!

  2. #2
    Senior Member B440's Avatar
    Join Date
    Jul 2012
    Location
    Thompson, CT
    Posts
    604

    Re: Broken bolt

    screwwwwed. Well, maybe a machine shop might be able to drill it.

    0 Not allowed! Not allowed!

  3. #3
    '12 Tuono & '02 R6 Eric Baker's Avatar
    Join Date
    Sep 2009
    Location
    Derry NH
    Age
    41
    Posts
    1,163

    Re: Broken bolt

    New bike?



    You'll have to drill it out. Won't be easy, you'll need a really sharp carbide bit and go really slow with plenty of lube. Either that, or get a cut off wheel and cut into it to try and get it out, but if it's broken flush, that may not be possible. Good luck. If you were closer, I'd give you a hand.

    0 Not allowed! Not allowed!

  4. #4

    Re: Broken bolt

    Dibs on the bike

    0 Not allowed! Not allowed!

  5. #5
    Unsafe At Any Speeds Jim's Avatar
    Join Date
    Aug 2007
    Location
    :lurk:
    Posts
    12,219
    Ya, I'd buy another motor before that happens.

    0 Not allowed! Not allowed!

  6. #6
    Lifer joeswamp's Avatar
    Join Date
    Sep 2006
    Location
    Swampscott, MA
    Posts
    1,221

    Re: Broken bolt

    See if you can get a dremel in there. Another way to solve this problem (requires that you know what you're doing) is acid, although this is a last resort kind of deal.

    I don't know why they call those things EZ outs, they oftentimes create situations that are not EZ to solve at all.

    0 Not allowed! Not allowed!
    Joe
    04 Thruxton (Street)
    01 SV650 (Track)
    75 CB400F (Future Vintage Racer)
    68 BSA Royal Star (Garage Floor Lubricator)

  7. #7
    AM #152 tropicoz's Avatar
    Join Date
    Apr 2010
    Location
    Maine
    Age
    46
    Posts
    448

    Re: Broken bolt

    If there's anyway to remove the remaining engine bolts and wiggle the motor over some just to get a hacksaw blade in between the motor and the mount, you can try to cut the bolt to help drop the motor. Then drill the bolt out and clean out the threads. A lot of work for one sutpid bolt, but it might be your only option at this point. I've kinda lost faith in EZ outs for that very reason. Can't tell you how many of the smaller ones I've broken.

    0 Not allowed! Not allowed!

  8. #8
    Lifer Chippertheripper's Avatar
    Join Date
    Jul 2009
    Location
    the fairest of havens
    Age
    43
    Posts
    13,898

    Re: Broken bolt

    Your first step should be soaking it in pb blaster overnight or while you go to work. Pics
    Of the broken ez out too. Is it flush? Or is there something to grab?

    0 Not allowed! Not allowed!
    Cliff's Cycles KTM
    NETRA enduro B-vet
    Close your eyes, look deep in your soul, step outside yourself and let your mind go.

  9. #9
    I am Dead now
    Join Date
    Oct 2009
    Location
    The tax State of the Nation
    Posts
    191

    Re: Broken bolt

    1. Take engine out bring to machine shop drill out bolt/EZ out.

    2. Just ride it minus one Woodcraft slider (50/50 chance you will drop it on that side)

    3. When you installed the Woodcraft sliders did you use "never seize" on the bolt threads? dissimilar metals IE. steel bolt & aluminum alloy creates a electrolysis corrosive action that cause the bolt threads to seize right up.

    If you really have to have that engine bolt in there to keep the engine from cracking it's case, I would say you are in for alot of work to do it correctly.

    Good luck Jim




    Quote Originally Posted by Jim View Post
    I have a Woodcraft frame slider bolt broken in my motor.

    We used an EZ out today to extract it. The EZ out grabbed the bolt, but the tip broke in the bolt.

    What are my options now?

    0 Not allowed! Not allowed!

  10. #10
    Unsafe At Any Speeds Jim's Avatar
    Join Date
    Aug 2007
    Location
    :lurk:
    Posts
    12,219
    The bolt isn't flush, it's inside. But it's tough to photo because the boots go through a sleeve through the frame, then into the motor.

    The bolt wasn't never seized. It most likely has blue loctite, but I can't remember if we used any when we put this motor in this winter.

    0 Not allowed! Not allowed!

  11. #11
    Lifer Chippertheripper's Avatar
    Join Date
    Jul 2009
    Location
    the fairest of havens
    Age
    43
    Posts
    13,898

    Re: Broken bolt

    Well pb blaster it every day anyways, is it broke in the motor, or at the sleeve, where the base of the slider would be?

    0 Not allowed! Not allowed!
    Cliff's Cycles KTM
    NETRA enduro B-vet
    Close your eyes, look deep in your soul, step outside yourself and let your mind go.

  12. #12
    Senior Member shortbus's Avatar
    Join Date
    Jan 2012
    Location
    Lowell
    Posts
    377

    Re: Broken bolt

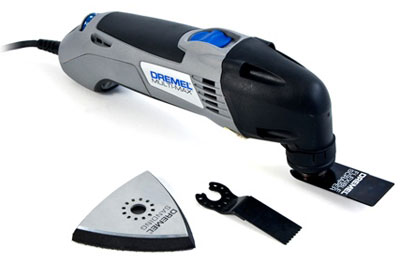

    Dunno if this is possible, but take a dremel mutlimax with a metal blade and use it at an angle so it can get into the hole cut a portion of the bolt so a flathead can be used?

    If you can use just the corner of the blade and get a good enough line it should work, depending on how "inside" the motor the bolt is, even if the motor gets cut some it won't really matter in that location.

    Broken bolt-dremel-multi-max-oscillating-tool

    0 Not allowed! Not allowed!

  13. #13
    Unsafe At Any Speeds Jim's Avatar
    Join Date
    Aug 2007
    Location
    :lurk:
    Posts
    12,219
    Chip, I'll show you at the 7/30 track day.

    Is there a way to break/remove that EZ out and try it again with a bigger bit?

    0 Not allowed! Not allowed!

  14. #14
    Lifer Chippertheripper's Avatar
    Join Date
    Jul 2009
    Location
    the fairest of havens
    Age
    43
    Posts
    13,898

    Re: Broken bolt

    You could try putting a bit a little bigger than the hole that's been drilled, it might knock the ez out loose, cuz they grab left, a normal drill spins right.

    0 Not allowed! Not allowed!
    Cliff's Cycles KTM
    NETRA enduro B-vet
    Close your eyes, look deep in your soul, step outside yourself and let your mind go.

  15. #15
    Your Father csmutty's Avatar
    Join Date
    Sep 2008
    Location
    Pomfret Center, CT
    Age
    31
    Posts
    11,436

    Re: Broken bolt

    Whatever you do the bit has to be carbide.

    0 Not allowed! Not allowed!
    -Christian LRRS/CCS HasBeen ECK Racing
    2011 Pit Bike Race CHAMPION!

  16. #16
    Lifer
    Join Date
    Mar 2008
    Location
    Central MA
    Posts
    2,099

    Re: Broken bolt

    Sometimes, you can use a hammer and a sharp punch to knock the broken EZ out tip free. Be patient, and work at the broken bit from the edges, knocking it around a little bit at a time. Then you can try again...

    0 Not allowed! Not allowed!

  17. #17
    Resident Turkey Tricky Mike's Avatar
    Join Date
    Jun 2005
    Location
    The burbs... where dreams go to die
    Posts
    6,070

    Re: Broken bolt

    Cleanse it in the blood of the lamb. It is the only way.

    2 Not allowed! Not allowed!

  18. #18
    rrrright down by da beach island boyeee's Avatar
    Join Date
    Jul 2009
    Location
    Quincy, MA
    Posts
    948

    Re: Broken bolt

    I've done this same crap before, including breaking carbide bits off in a bolt.

    The best option I see mentioned is just load up on good bits, a corded drill, and WD40, and prepare to spend a while carefully drilling it out. Get as close to the threads as you can, and then use a tap and die set to clean it up.

    0 Not allowed! Not allowed!
    08 Triumph Daytona 675, Jet Black w/ Gold
    dirty bike: 2015 KTM 250 XC-F

  19. #19
    Unsafe At Any Speeds Jim's Avatar
    Join Date
    Aug 2007
    Location
    :lurk:
    Posts
    12,219
    Some good info here. Thanks everyone.

    0 Not allowed! Not allowed!

  20. #20
    Super Adventurer SRTie4k's Avatar
    Join Date
    Mar 2009
    Location
    Dublin, NH
    Age
    38
    Posts
    5,398

    Re: Broken bolt

    A dremel with a carbide burr will grind that EZ Out head down in about 10 minutes. I've done a similar thing myself with a broken EZ Out.

    0 Not allowed! Not allowed!
    2015 KTM 1290 Super Adventure
    2017 Honda CRF250L Rally

  21. #21
    Wife calls me a member Svenny's Avatar
    Join Date
    Mar 2012
    Location
    Seekonk MA
    Age
    55
    Posts
    150

    Re: Broken bolt

    Like chipper said, soak it with PB, and use a bigger bit, that may be enough to knock out the EZout tip. Try using NEW (sharp) split points, the split point cutting edges may grab the EZout better than a regular point. SLOW rpm's. Use HSS bits for this instead of a solid carbide bit - for this application carbides are expensive and too easy to break (carbide is very brittle) - a 1/4" carbide bit is about $20.
    Don't let the drill bit go off center too far or for too long...you don't wanna turn your threaded hole into an oval.
    Dunno how hard it is to reach, but you can also first try smacking the EZout tip around the edges (away from the center) using an awl and hammer, this might skew it or move it enough that it comes out easier, or knock it out all together. .

    0 Not allowed! Not allowed!
    2008 Fisher-Price Kawi 12VDC
    Exide hi-performance battery
    Frost-King duct tape reinforced steering damper
    Topps "Garbage Pail Kids" custom graphics



  22. #22
    Junior Member
    Join Date
    Jun 2011
    Location
    Castleton, Vt
    Posts
    21

    Re: Broken bolt

    Im assuming the EZ out is round? I know some have slots in them to give some extra grab...And i also know that some tool maufacturers make a tool to extract broken taps. If there are slots in the EZ out, maybe something like this would work? It basically just goes into the slots and allows you to back it out with a wrench. If not, i agree with advise given above. A few good bits, lots of lube, and TAKE YOUR TIME to drill it out. Its going to feel like its taking forever, and the bit is always going to want to dig into soft aluminum as opposed to a very hardened EZ out. But, were there is a will, there is a way. Good luck man

    0 Not allowed! Not allowed!

  23. #23
    Hawk Is Respectable Now WordTooYoMamma's Avatar
    Join Date
    Jan 2009
    Location
    Waltham
    Age
    33
    Posts
    2,376

    Re: Broken bolt

    Had this happen on a buddy's jeep Jim. Those Ez outs are a bitch when they break. We took it to his dads machine shop and he broke 3 diamond bits trying to drill threw the EZ out + the bolt that was snapped before finally drilling the old bolt out perfectly. Good luck.

    0 Not allowed! Not allowed!

  24. #24
    Pescador de Ilusões Eddie's Avatar
    Join Date
    Nov 2008
    Location
    Framingham, MA
    Posts
    2,665

    Re: Broken bolt

    Take it to Pete Kates Jim. As you might know Pete used to be a machinist in his prior life. He successfully remove a stuburn broken bolt from my fork.

    0 Not allowed! Not allowed!

  25. #25
    Lifetime Motorcyclist Woodcraft's Avatar
    Join Date
    Sep 2009
    Location
    Massachusetts
    Posts
    1,291

    Re: Broken bolt

    Just as a note as I follow this thread, motor mount bolts do not need or want Loctite. If anything, they need never-sieze on there for the previously mentioned dis-similar metals reason. When properly installed, they will not work loose by themselves. In the event that a bolt breaks in a fall, they are infinitely easier to get out if there is not Loctite gumming up the threads. If you have used Loctite, I would suggest using a propane torch to melt the loctite just prior to attempting any extraction (EZ-out or similar intalled and ready to go).

    Lots of good advice on getting the first EZ-out removed on this thread. Worst case here is the the bolt gets drilled out until all the garbage is gone, trying again with a new EZ-out and then heli coiling the threads. Fun stuff.....

    0 Not allowed! Not allowed!
